Visual evidence for changes

Embed images in the PR description so reviewers can assess the result of a change. Link the input drawing or regression fixture and explain how to reproduce it. The PR template includes space for this evidence and a release-note caption.

Change	Evidence to include
New drawing or UI feature	A real example of the resulting drawing or interaction.
New shortcuts	Labeled output examples for every added key and target context: atom, bond, selection, or empty canvas. Explain case, modifiers, aliases, and repeated-key behavior. For commands without drawing output, show the affected UI or a command reference alongside the relevant check.
Visible bug fix	Matched before/after images for each visible defect. Use the same input and operation, scale, framing, style, and export settings. Add a close-up when needed.
Property or interchange fix	Before/after property values or round-trip results as well as the drawing when applicable. A correct-looking figure does not establish correct molecular data.
Nonvisual change	Explain why a drawing comparison does not apply. Include the relevant documentation excerpt, test result, or other evidence.

Capture and describe

Use actual application screenshots or output from the application renderer. Label sketches and expected-result references explicitly. Do not redraw or retouch a bug away in a screenshot. Keep any annotations outside the drawing or make them visibly distinct.

Record the input/fixture, exact actions or keys, base and head commits, platform/build, zoom, and export format. For a stacked PR, compare against its declared base. If a defect was introduced and fixed within the same PR, label the earlier implementation commit instead of calling it the base. Disclose different capture conditions or an unavailable earlier build.

Check the real desktop interaction when a change concerns input, menus, selection, or file opening. A gallery rendered through a library function demonstrates output, but does not replace an interaction check. Inspect every published image at its displayed size for legibility, clipping, and accidental inclusion of unrelated documents or private information.

Reuse in release notes

Give each change a short, user-facing caption and useful image alt text. Store compact images under docs/images/ or use permanent GitHub attachment links. Embed them directly in the PR; use immutable commit URLs for images stored on another branch. Avoid local /tmp paths and temporary review-site URLs in published descriptions.

Keep large scratch galleries, duplicate exports, videos, and build artifacts outside Git. Reuse each published image in the release changelog rather than committing another copy. The release entry should link the PR, state the user benefit, and retain any limit that matters to interpreting the image.

The current stacked changes provide examples and reusable captions. They remain unreleased until the corresponding PRs merge and a release is published.

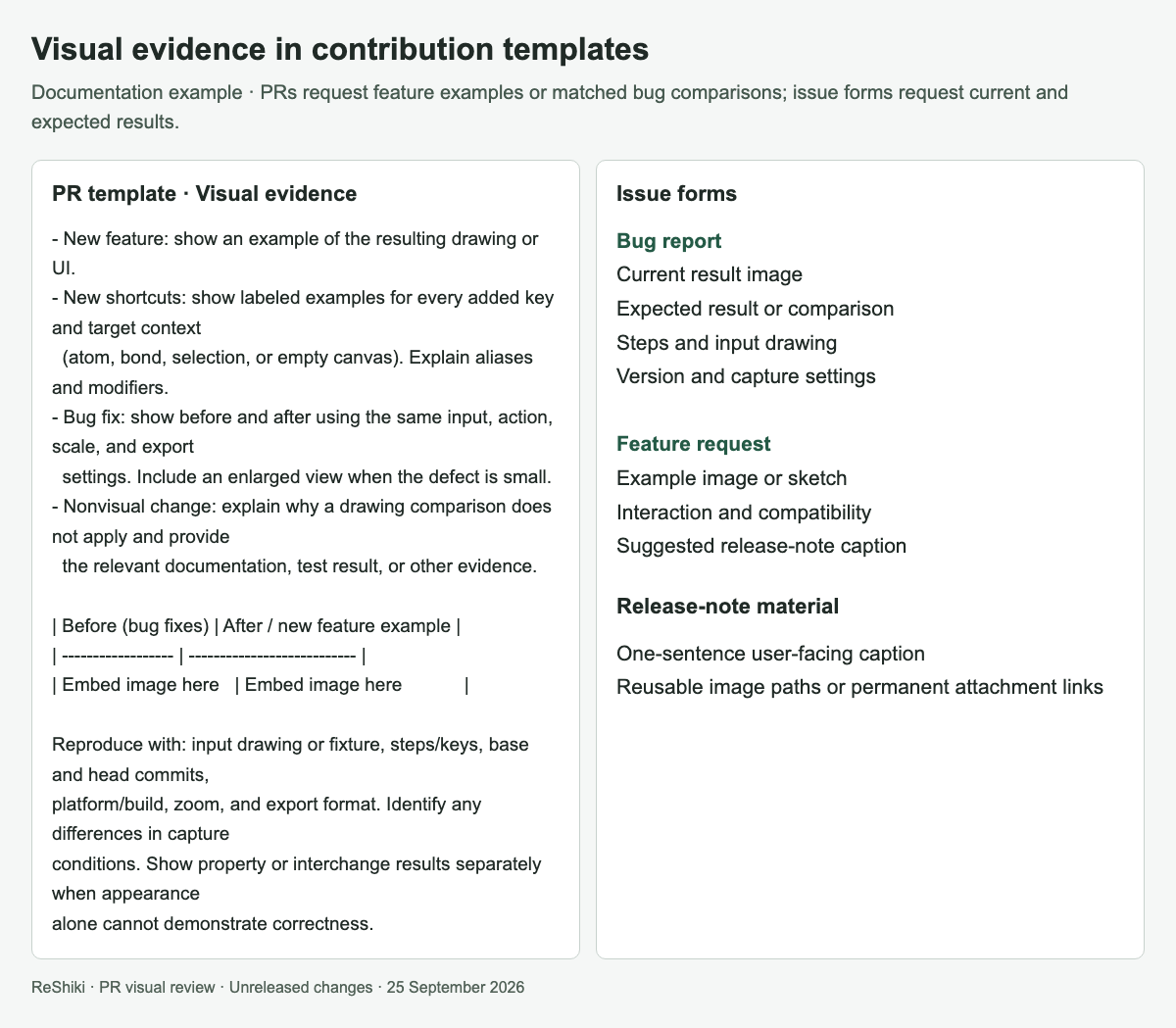

Template example
